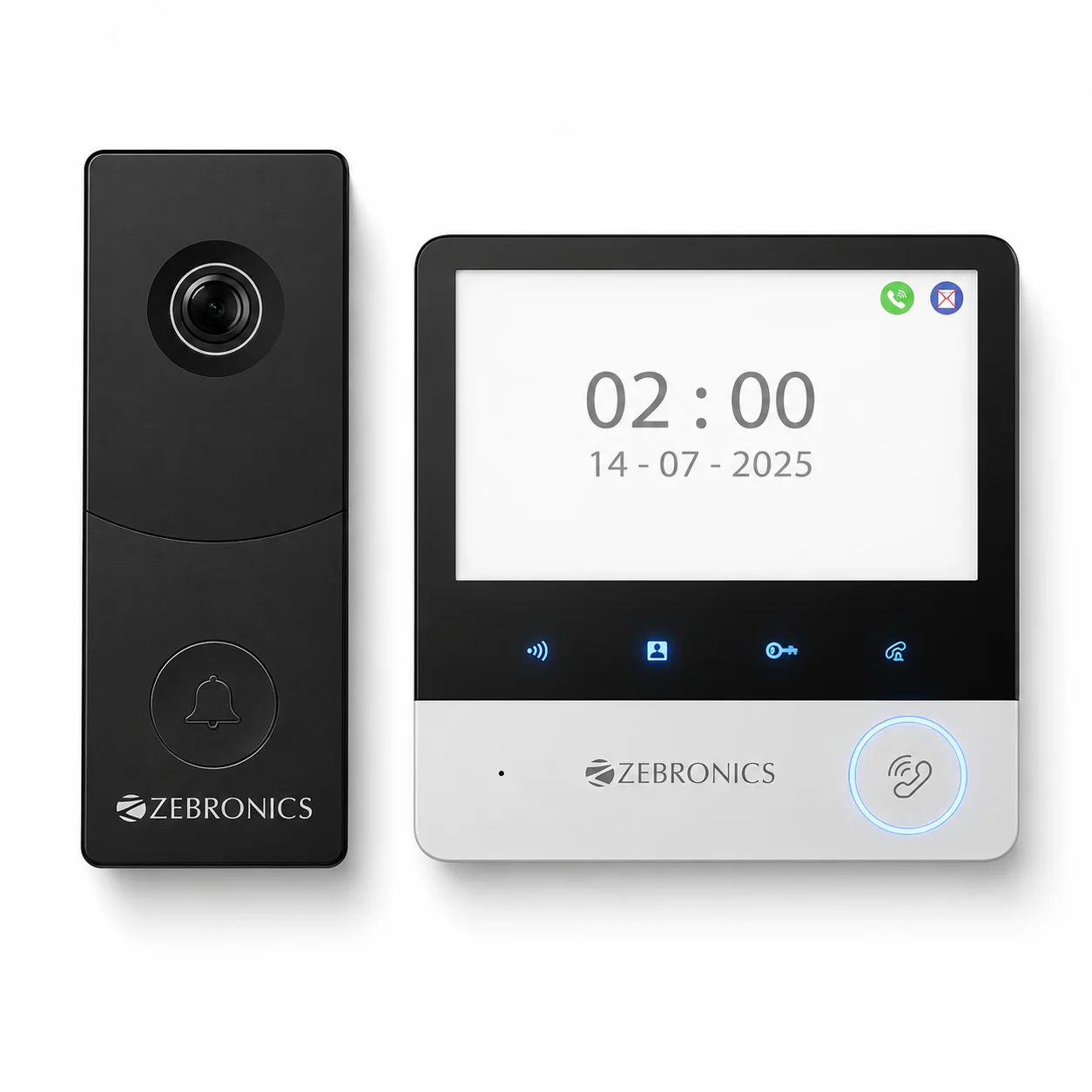

ZEB-VDP7200MIV VIDEO DOOR PHONE

Specifications

Outdoor Unit

• Image Sensor Config. : 2MP 1/3″ CMOS
• Image Resolution : 960 x 576
• Frame Rate : 25 FPS
• Lens : 1/3″ @F2.94mm
• Night Vision : up to 5m in distance
• Outdoor Unit Net. Weight : 105g
• Outdoor Unit Dimension (W x D x H) :  5 x 2.8 x 13.6 cm
• Motion Detection : No
• Voice Messages :  NA
• Camera : 700TVL
• Surface Mount : Yes
• Adjustable Microphone and Speaker Volume : Yes
• LED for Night Vision : IR LED
• Angular Bracket : Yes
• Wifi Enabled : No
• Housing : Plastic
• IP level : IP65
• View Angle : 120° wide angle

Indoor Unit

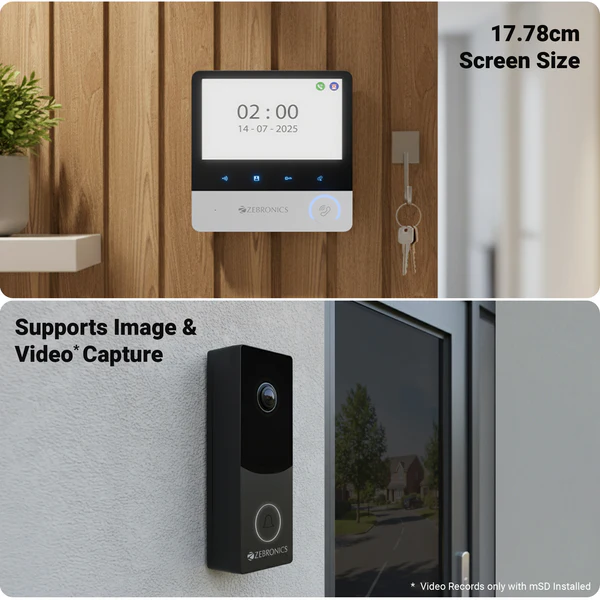

• Screen Size : 17.78 cm
• Screen Resolution : 1024×600 pixel
• Brightness Setting : Adjustable
• Contrast Setting : Adjustable
• Image Adjustment : yes
• Colour Setting : Adjustable
• Volume Adjustment : Yes

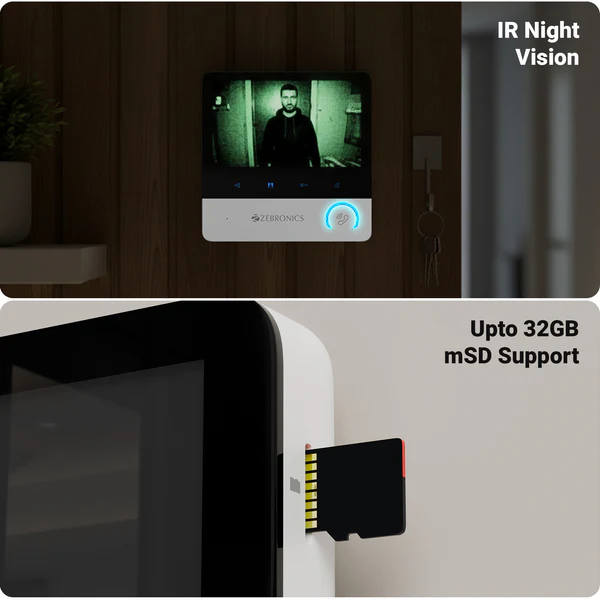

• Night Vision : IR Night vision
• Talkback Type : Yes
• Door Lock Release : Yes
• External mSD Card Support : Yes, upto 32GB

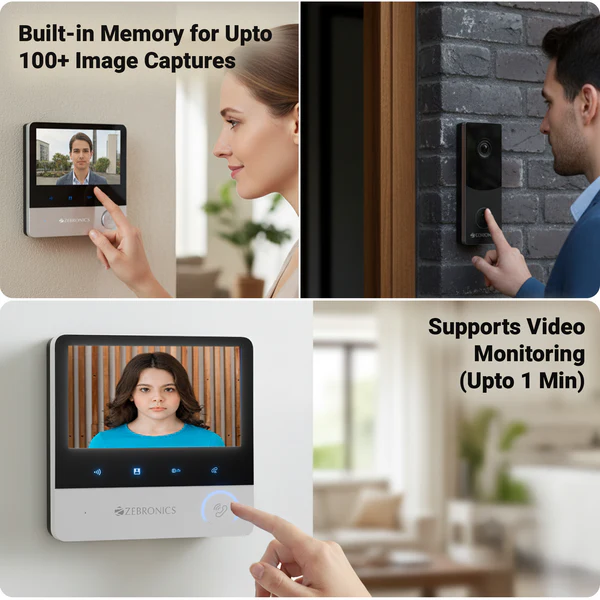

• Image Storage Capacity : 150 Images
• Video Storage Capacity : Yes (In mSD card)
• Recorded Video Length : 15 seconds
• Indoor Monitors : 1 Indoor unit
• Input power : DC 14.5V
• Melody : 12 melody options
• Digital Photo Frame : No
• SDRAM : 64MB DDR2 (Built-in CPU)
• Effective Area : Horizontal 120°，Diagonal 145°，Vertical 65°
• Microphone :  -42dB
• Relative Humidity : < 90%
• Input Voltage : DC 14.5V, 1A max.
• Power Consumption : Static State ≤ 3W , Working State ≤ 10W
• Operating Temparature : -20 °C to 50 °C
• Indoor Unit Net. Weight : 385g
• Indoor Unit Dimension (W x D x H) : 18 x 2.1 x 18 cm

Package Content

• Indoor Unit : 1 U
• Outdoor Unit : 1 U
• Mounting Kit : 1 SET
• Connectors Kit : 1 SET
• Power Adaptor : 1 U
