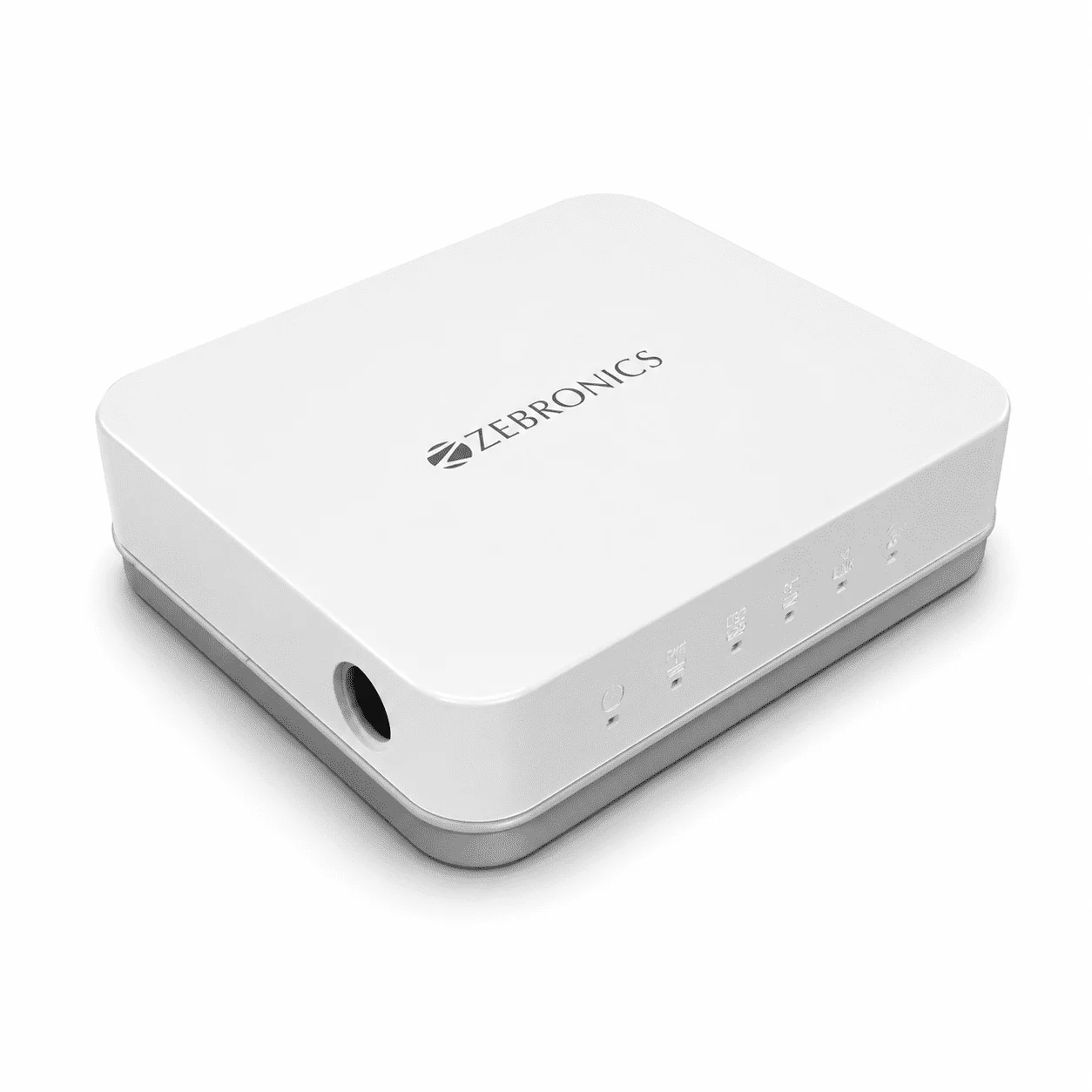

ZEBRONICS ETHERNET SWITCH 5 PORT 10/100

Specifications

• Connector Type : 5 100M RJ45 Ports
• Network Protocols : IEEE802.3/802.3u, IEEE802.3i, IEEE802.3x
• Network Media : 10BASE-T: <100 meters
• 100BASE-TX : <100 meters
• Power Supply : Input:  DC 5V⎓2A
• Performance Specification   :  Bandwidth: 1.6Gbps
  MAC: 1K
  Packet Buffer Memory: 512Kbits
  10M Packet Forwarding Rate: 14880pps/port
  100M Packet Forwarding Rate: 148800pps/port
• LED Indicator : Power (Red): ON – Powering, OFF – No Power
  Ethernet (Green) : Flashing – Data Transmission, OFF – Disconnect
• Working Environment : Operating Temperature: 0°C ~ 40°C
  Storage Temperature: -40°C ~ 70°C
  Operating Humidity: 5% ~ 90% (No Condensation)
  Storage Humidity: 5% ~ 90% (No Condensation)
• Physical Parameter : Product Dimension W x D x H : 9.2 x 7.2 x 2.3cm
  Package Dimension: W x D x H :
  Net. Weight: 72g
• Port Surge Protection : 1KV
• Lightning Protection : 1KV
• Forwarding Mode : Store and forward

Package Content

• Ethernet Switch : 1 U
• Power Adapter : 1 U
• QR Code Guide : 1 U
