305mtr CCA cat 6 OD network Cable

Specifications

• Model Name : ZEB-C4PCAT6CCA-305M- OD2 – PRIME
• No. of wires : 4 pairs
• Cable length : 305 meter

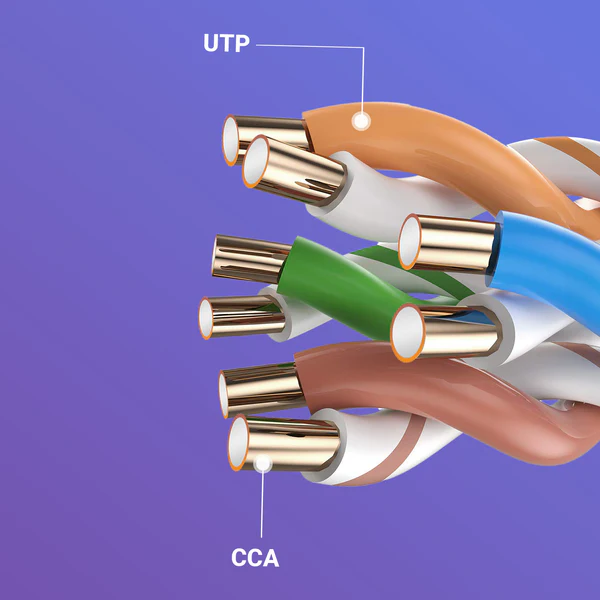

• Conductor material : 24 AWG Solid Bare Copper
• Construction diameter : 0.55mm
• Insulation material : IPE
• Insulation thickness : 0.25mm
• Insulation diameter : 0.93mm

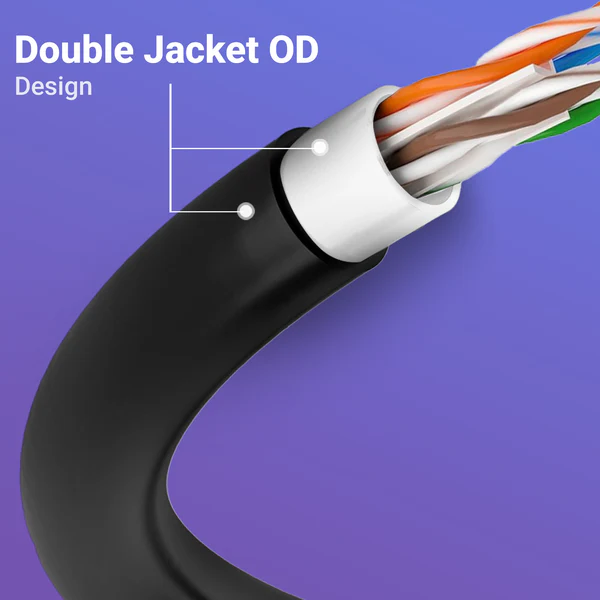

• Jacket material inner : PVC
• Jacket material outer : PE
• Jacket thickness : 0.44 mm
• Jacket diameter : 5.50 mm
• Jacket thickness : 0.55 mm
• Jacket diameter : 6.45 mm
• Jacket color Inner : Gray
• Jacket color Outer : Black
• Separator : PE Central cross separator
• Conductor resistance : <9.38Ω/km at 20°C
• Weight : 11.5 Kg
• Country of Origin : India

Mechanical Properties

• Operation Temperature : -10°C to +70°C
• Storage Temperature : 0°C to +50°C
• Bending Radius : <25.4 mm at -20°C to ±1°C
• Pulling Force : 11.5 Kgs

Packing Contents

• Cable : 305 Meter x 1U
