Cat 6 Ethernet Cable

Specifications

• Model : ZEB-PC4PCAT6

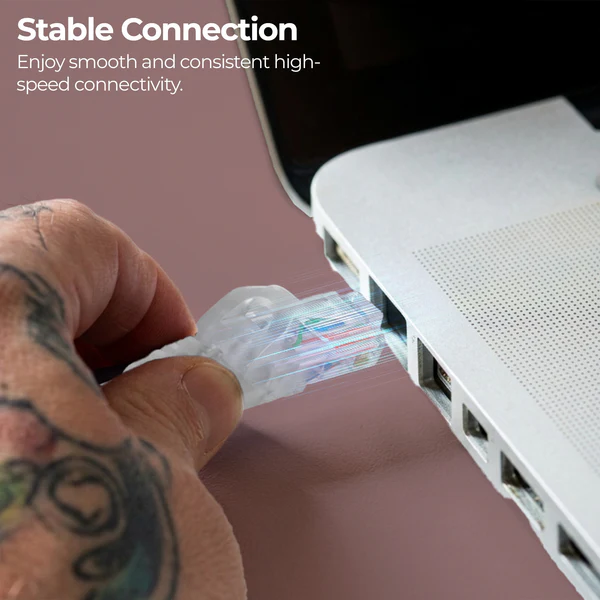

• Connector Type : RJ45
• Ethernet Speed : 1000BASE-T

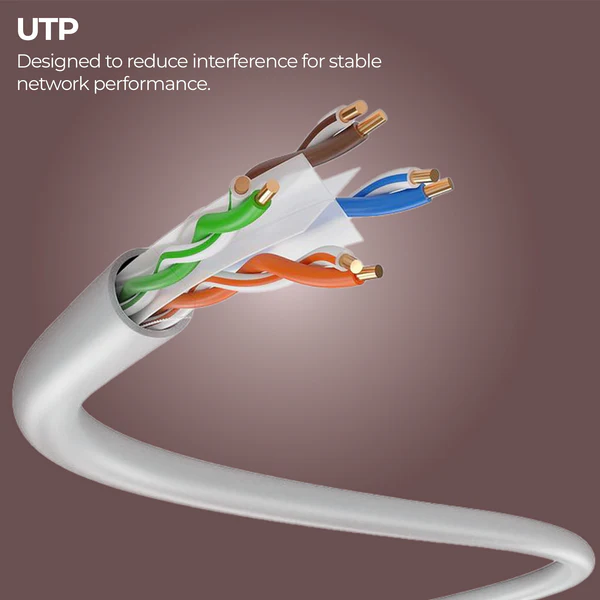

• No. of wires : 4 pairs
• Cable Length : 1.5M, 05M, 10M, 15M, 20M, 25M, 30M
• Conductor material : 24 AWG CCA
• Construction diameter : 5.9 mm
• Insulation material : High Density Polyethylene
• Insulation thickness : 0.21mm
• Insulation diameter : 0.91mm
• Jacket material : PVC
• Jacket thickness :0.60 mm
• Jacket diameter : 5.9mm
• Jacket color : Gray
• Separator : PE Central cross separator
• Conductor resistance : <9.38Ω/km at 20°C
• Country of Origin : India

Mechanical Properties

• Operation Temperature : -10°C to +70°C
• Storage Temperature : 0°C to +50°C
• Bending Radius : <25.4 mm at -20°C to ±1°C
• Pulling Force : 11.5 Kgs

Package contents

• Cable : 1.5M, 05M, 10M, 15M, 20M, 25M, 30M x 1U
