12Volts DC, 8 Cameras individual output Power supply | PLASTIC BODY | INDOOR SMPS

Specifications

• Input Voltage range : AC100V-240V
• Input Frequency : 50HZ/60HZ
• Input Current : 0.75A
• Output Voltage : DC12V
• Output Current : 4.2A
• Output Power (W) : 50W
• Ripple : 100mV
• Hold up Time : 16
• Turn-on Delay time : 2 seconds
• Rise & Fall time : 20 msec
• Normal : 11.60-12.60V
• Medium : 12.40-13.40V
• High : 13.40-14.40V

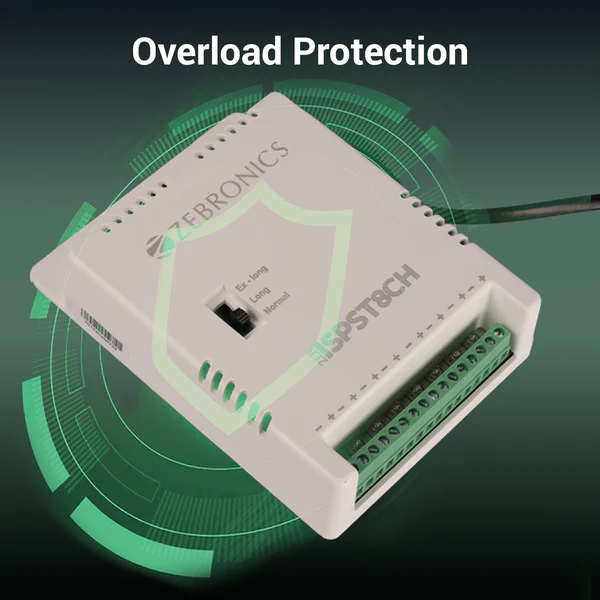

• Over Load Protection : Yes
• Over Voltage Protection : Yes
• Short circuit Protection : Yes
• Over Temperature Protection : Yes
• Operation Temperature : -10° to 50° C
• Storage Temperature : -10° to 50° C
• Operation Humidity : 10% — 90% non condensing
• Storage Humidity : 10% — 90% non condensing
• Input Terminals : 8-tail socket
• Output Terminals : European terminal

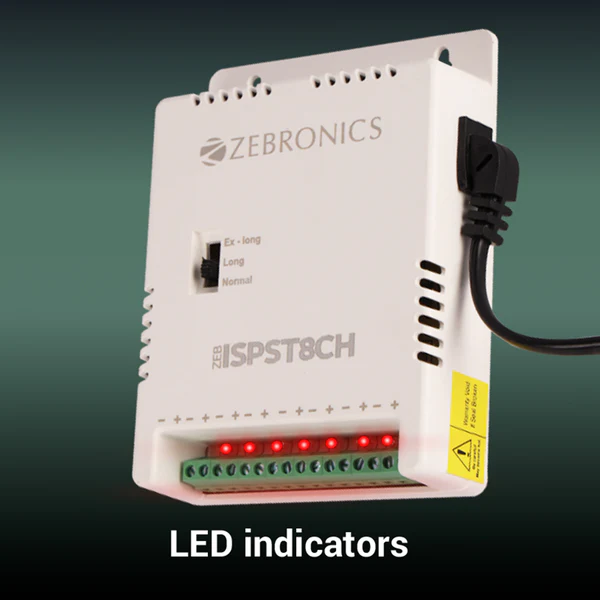

• LED Indicators : Red
• Enclosure Material : Plastic
• Weight with power cord : 320gm
• Dimensions (W x D x H) : 14.32 x10.8 x 3.42cm

Package Contents

• Power Supply : 1 Unit
• Power Cord : Included (1 Meter)
