12Volts DC, 84Cameras individual output Power supply | PLASTIC BODY | INDOOR SMPS

Specifications

• Input Voltage range : AC120V-265V
• Input Frequency : 50/60HZ
• Input Current : 0.5A
• Output Voltage : DC12V
• Ripple : <500mV
• Hold up Time : 10 ms
• Turn-on Delay time :30 ms
• Rise and Fall time : 30 ms
• Over Load Protection : Yes

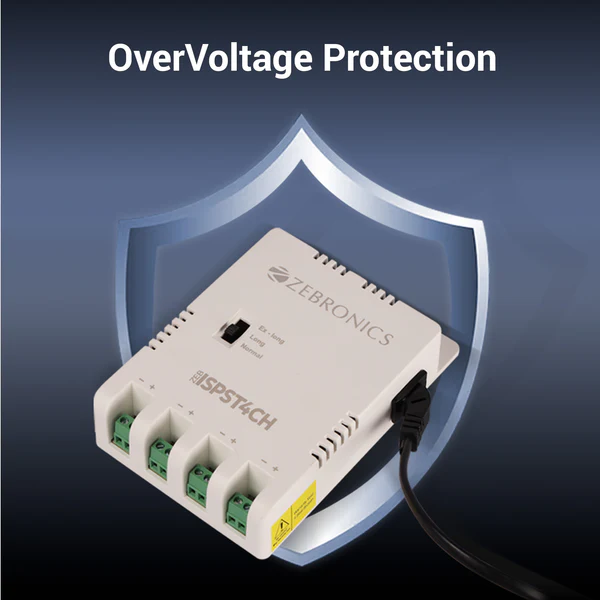

• Over Voltage Protection : Yes
• Short circuit Protection : Yes
• Over Temperature Protection : Yes
• Operation Temperature :  0° C to 45° C
• Storage Temperature : 0°C to 55° C
• Operation Humidity : 10% — 90% non condensing
• Storage Humidity : 10% — 90% non condensing
• Input of the Power Supply Unit : 2 Pin India Power cord – non detachable
• Output Terminals of the Power Supply Unit : 4 Pairs of Terminals output connector
• LED Indicators : 4
• Enclosure Materials : Plastic Body
• Net Weight with power cord : 285 g
• Product Dimension (W x D x H) : 9.5 x 3.5 x 14.3 cm
• Color Box Dimension (W x D x H) : 19.4 x 4.7 x 12 cm

Package Contents

• Power Supply : 1 U
