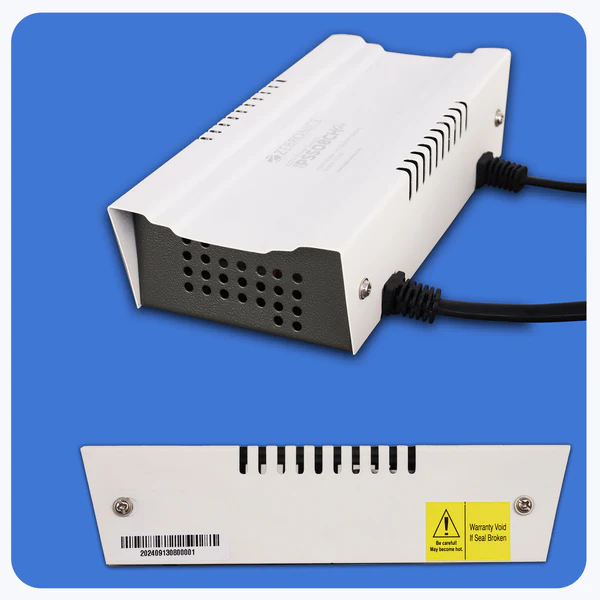

8 Channel | Metal Body | indoor cctv smps

Specifications

• Input Voltage range : AC 110V~240V
• Input Frequency : 50/60 HZ
• Input Current : 0.6A
• Output Voltage : 12.3V – 12.8V
• Ripple : <500mv
• Hold up Time : 10 ms
• Turn-on Delay time : 30 ms
• Rise & Fall time : 30 ms
• Over Load Protection : Yes
• Over Voltage Protection : Yes
• Short circuit Protection : Yes
• Over Temperature Protection : Yes
• Operation Temperature : 0°C to 45°C
• Storage Temperature : 0°C to 55°C
• Operation Humidity : 10% — 90% non condensing
• Storage Humidity : 10% — 90% non condensing
• Input terminals of the power supply unit : 2 Pin Indian power cord – non detachable
• Output terminals of the power supply unit : 1 Terminals output
• LED Indicators : 1
• Enclosure Materials : Metal Body
• Weight with power cord : 366g
• Dimensions (W x D x H) : 17.2 x 7.83 x 4.26 cm

• Package Contents
• CCTV Power Supply : 1 U
