ZEB – PA122A Power Adaptor

Specifications

• Input Voltage range : AC 120V~265V
• Input Frequency : 50/60 HZ
• Input Current : 0.25A

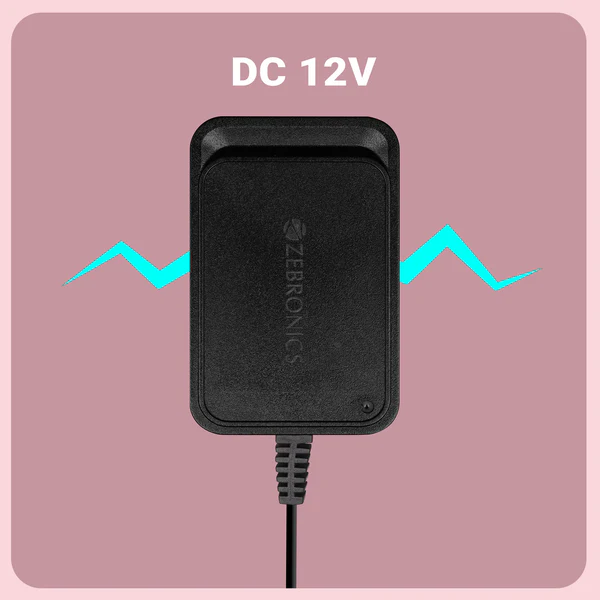

• Output Voltage : 12.2V
• Output current : 2A (Max.)

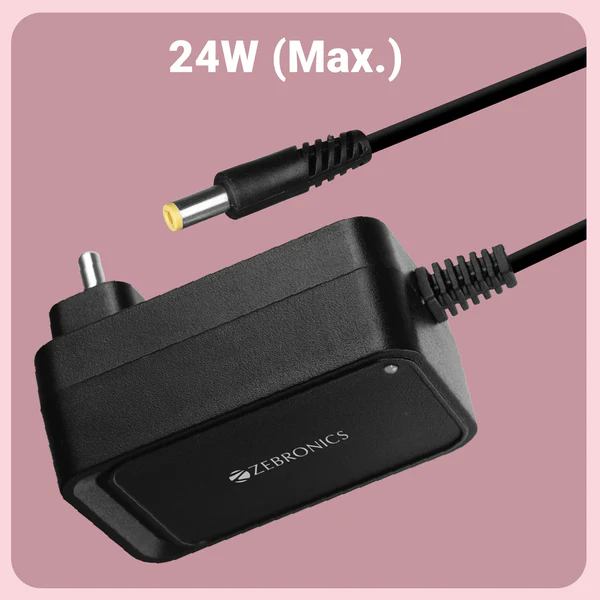

• Output Power : 24W
• Ripple : <500mv
• Hold up Time : 10 ms
• Turn-on Delay time : 30 ms
• Rise & Fall time : 30 ms
• Over Load Protection :Yes
• Over Voltage Protection : Yes
• Short circuit Protection : Yes
• Over Temperature Protection : Yes
• Operation Temperature : 0°C to 45°C
• Storage Temperature : 0°C to 55°C
• Operation Humidity :10% — 90% non condensing
• Storage Humidity : 10% — 90% non condensing
• Input of the power supply unit : Indian 2-Pin Plug
• Output terminals of the power supply unit : Barrel Pin DC 5525
• LED Indicators : 1
• Enclosure Materials :  Plastic
• Weight with power cord : 104 g
• Dimensions (W x D x H) : 4.8 x 6.04 x 8.02 in cm

Package Contents

• Power Adapter : 1U
