UPS-ZEB-MLS755 POWER UPS
Original price was: ₹4,299.00.₹2,291.00Current price is: ₹2,291.00.
- POWER UPS
- Micro load UPS. Specially made for the security and surveillance CCTV /Broadcast studio / Medical equipment
- Wide Input Range
- ZEB Micro Load Sense system, Microprocessor based output load sensing feature,
to sense micro power consumption devices - Backup of upto 3h 45min* for micro power consumption devices
- Excellent microprocessor control guarantees high reliability
- Advanced 3 Tier battery management system, prolongs battery life by more than 30%.
- Made for extreme Indian Conditions.
- Rogue Equipment Connection proof – can adapt to Generators /Inverters having poor power factor as well as obsolete square wave output.

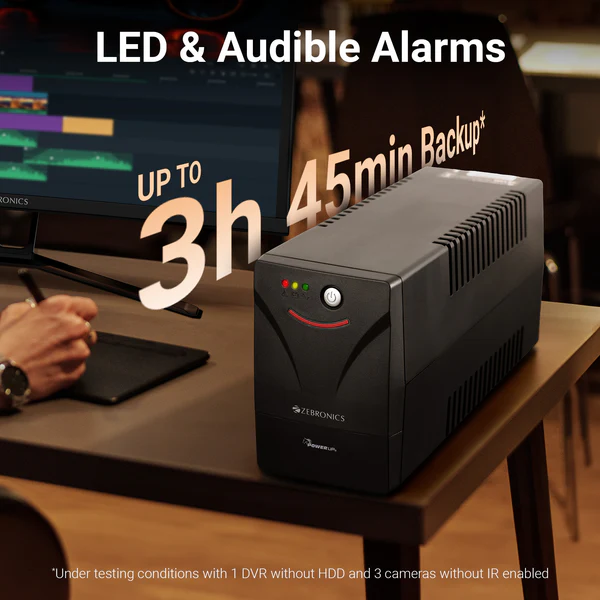

- LED & Audible alarms for instant alert signals.
- Line interactive UPS

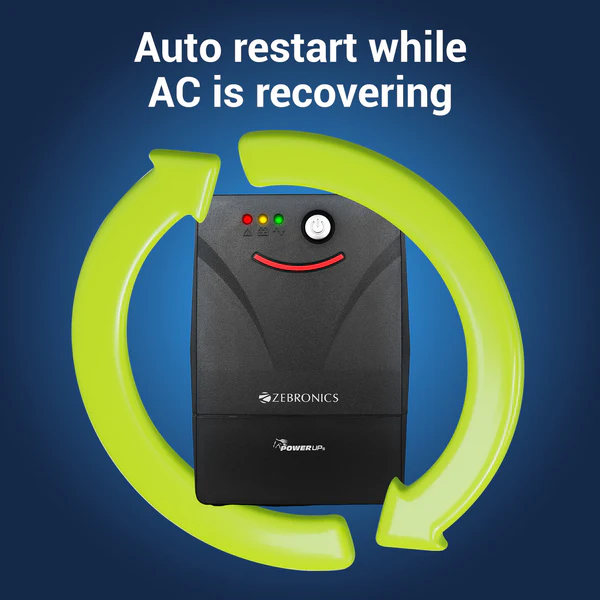

- Auto restart while AC is recovering
- Double Boost
- Automatic Voltage Regulation (AVR)
Description
Specifications
- Capacity
- (VA/W) : 600VA/360W
Input
- Nominal Voltage : 220-240 VAC
- Voltage range : 140-300 VAC
- Frequency : 50/60 Hz
- Plug Type : 3 Pin Plug
- Input Protection : Internal Fuse
Output
- Voltage Range (AC mode) : 230VAC ± 10 %
- Voltage Range (Batt. Mode) : 230VAC ± 10 %
- Frequency Range (Batt. Mode) : 50/60Hz ±1%
- Transfer Time : 4-8ms
- Waveform : Simulated Sine Wave
- No. of Output Sockets : 3
- Protections : Overload, Short Circuit, Over Discharge & Over Charge
Battery
- Battery type : 12V 7Ah x 1 nos
- Charging Current : 1A
- Recharge Time : 6-8h to charge 90% (after complete discharge)
Indicators
- No. Of LEDs : 3 LED
- AC Mode : Green LED Glows
- Battery mode : Orange LED blinks
- Fault Mode : Red LED Glow
Alarm
Battery mode : Beeping every 10 Seconds
Low battery : Beeping every 1 Second
Overload : Beeping every 0.5 second
Fault : Continuous Beeping
Physical
- Dimension (W x D x H) : 10.5 x 27.6 x 14.4 cm
- Net Weight : 3.9 kg
- Package Dimension (W x D x H) : 32.6 x 14.2 x 21.3 cm
Environmental Factors
- Operational Temperature : 0-40⁰C
- Noise Level : < 45dB
Package Contents
- UPS : 1 U
- QR Code Guide : 1 U
- Fuse : 1U
